3 An R Package Engineering Workflow

openstatsware Course: Good Software Engineering Practice for R Packages

Andrew

September 26, 2023

Motivation

From an idea to a production-grade R package

Example scenario: in your daily work, you notice that you need certain one-off scripts again and again.

The idea of creating an R package was born because you understood that “copy and paste” R scripts is inefficient, and on top of that, you want to share your helpful R functions with colleagues and the world…

Professional Workflow

Photo CC0 by ELEVATE on pexels.com

Typical work steps

1. Idea
2. Concept creation
3. Validation planning
4. Specification:
   1. User Requirements Spec (URS),
   2. Functional Spec (FS), and
   3. Software Design Spec (SDS)

5. R package programming
6. Documented verification
7. Completion of formal validation
8. R package release
9. Use in production
10. Maintenance

Workflow in Practice

Photo CC0 by Chevanon Photography on pexels.com

Frequently Used Workflow in Practice

1. Idea
2. R package programming
3. Use in production
4. Bug fixing
5. Use in production

6. Bug fixing + Documentation
7. Use in production
8. Bug fixing + Further development
9. Use in production
10. Bug fixing + …

Bad practice!

Why?

Why practice good engineering?

Cost distribution among software process activities

doi:10.14569/IJACSA.2020.0110375

Why practice good engineering?

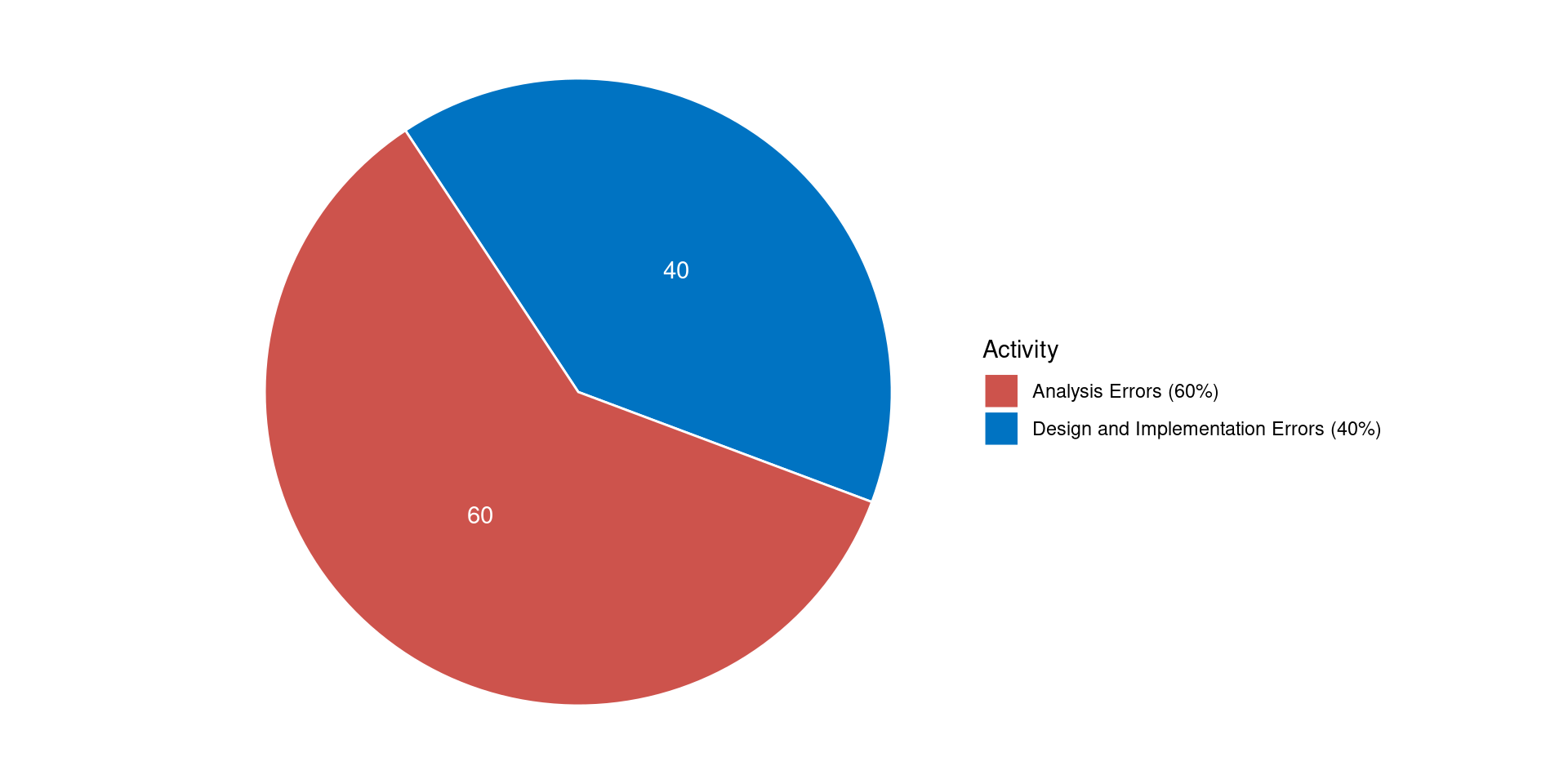

Origin of errors in system development

Boehm, B. (1981). Software Engineering Economics. Prentice Hall.

Why practice good engineering?

• Don’t waste time on maintenance
• Be faster with release on CRAN
• Don’t waste time with inefficient and buggy further development

• Fulfill regulatory requirements¹
• Save refactoring time when the Proof-of-Concept (PoC) becomes the release version
• You don’t have to be shy any longer about inviting other developers to contribute to the package on GitHub

1. See also Ensuring Quality

Why practice good engineering?

Invest time in

• requirements analysis,
• software design, and
• architecture…

… but in many cases the workflow must be workable for a single developer or a small team.

Workable Workflow

Photo CC0 by Kateryna Babaieva on pexels.com

Suggestion for a Workable Workflow

1. Idea
2. Design docs
3. R package programming
4. Quality check (see Ensuring Quality)
5. Publication (see Publication)
6. Use in production

Example - Step 1: Idea

Let’s assume that you used some lines of code to create simulated data in multiple projects:

dat <- data.frame(
    group = c(rep(1, 50), rep(2, 50)),
    values = c(
        rnorm(n = 50, mean = 8, sd = 12),
        rnorm(n = 50, mean = 14, sd = 11)
    )
)

Idea: put the code into a package

Example - Step 2: Design docs

1. Describe the purpose and scope of the package
2. Analyse and describe the requirements in clear and simple terms (“prose”)

Obligation level	Key word1	Description
Duty	must, shall	“must have”
Desire	should	“nice to have”
Intention	may	“optional”

1. Rupp, C., & SOPHISTen, die. (2009). Requirements-Engineering und -Management: Professionelle, iterative Anforderungsanalyse für die Praxis (5. Ed.). Carl Hanser Verlag GmbH & Co. KG.. See also: plainlanguage.gov

Example - Step 2: Design docs

Purpose and Scope

The R package simulatr shall enable the creation of reproducible fake data.

Package Requirements

simulatr shall provide a function to generate normal distributed random data for two independent groups. The function must allow flexible definition of sample size per group, mean per group, standard deviation per group. The reproducibility of the simulated data must be ensured via an optional seed. It should be possible to print the function result. The package may also facilitate graphical presentation of the simulated data.

Example - Step 2: Design docs

Useful formats / tools for design docs:

• R Markdown¹ (*.Rmd)
• Quarto¹ (*.qmd)
• Overleaf²
• draw.io³

UML Diagram

1. Based on Markdown, the easy-to-use markup language

2. The easy to use, online, collaborative LaTeX editor

3. A picture is worth a thousand words

Example - Step 3: Packaging

R package programming

1. Create basic package project (see R Packages)
2. C&P existing R scripts (one-off scripts, prototype functions) and refactor¹ it if necessary
3. Create R generic functions
4. Document all functions

1. See also Ensuring Quality

Example - Step 3: Packaging

One-off script as starting point:

sim.data <- function(n1, n2, m1, m2, s1, s2) {
    data.frame(
        group = c(rep(1, n1), rep(2, n2)),
        values = c(
            rnorm(n = n1, mean = m1, sd = s1),
            rnorm(n = n2, mean = m2, sd = s2)
        )
    )
}

Example - Step 3: Packaging

Refactored script:

getSimulatedTwoArmMeans <- function(n1, n2, mean1, mean2, sd1, sd2) {
    data.frame(
        group = c(rep(1, n1), rep(2, n2)),
        values = c(
            rnorm(n = n1, mean = mean1, sd = sd1),
            rnorm(n = n2, mean = mean2, sd = sd2)
        )
    )
}

Almost all functions, arguments, and objects should be self-explanatory due to their names.

Example - Step 3: Packaging

Define that the result is a list¹ which is defined as class²:

getSimulatedTwoArmMeans <- function(n1, n2, mean1, mean2, sd1, sd2) {
    result <- list(n1 = n1, n2 = n2,
         mean1 = mean1, mean2 = mean2, sd1 = sd1, sd2 = sd2)
    result$data <- data.frame(
        group = c(rep(1, n1), rep(2, n2)),
        values = c(
            rnorm(n = n1, mean = mean1, sd = sd1),
            rnorm(n = n2, mean = mean2, sd = sd2)
        )
    )
    # set the class attribute
    result <- structure(result, class = "SimulationResult")
    return(result)
}

1. It’s common practice to add the function arguments to the result \(\rightarrow\) should be a list or class

2. To implement generics, the result must be a class

Example - Step 3: Packaging

The output is impractical, e.g., we need to scroll down:

x <- getSimulatedTwoArmMeans(n1 = 50, n2 = 50, mean1 = 5, mean2 = 7, sd1 = 3, sd2 = 4)
x

$n1
[1] 50

$n2
[1] 50

$mean1
[1] 5

$mean2
[1] 7

$sd1
[1] 3

$sd2
[1] 4

$data
    group     values
1       1  6.8143088
2       1  6.7027084
3       1  5.0624613
4       1  4.8429073
5       1  1.8923379
6       1  6.8793894
7       1  2.3624141
8       1  2.7008845
9       1 11.0375760
10      1  8.4516463
11      1 -2.1102606
12      1  4.4634979
13      1  2.6464570
14      1 10.1069589
15      1  3.0181308
16      1 10.8251506
17      1  1.0832926
18      1 -1.2993955
19      1  7.2437695
20      1  8.9862444
21      1  7.5435374
22      1  8.4346854
23      1  4.5906002
24      1  3.1702120
25      1 10.5416017
26      1  2.9037398
27      1  7.5879017
28      1 10.6926076
29      1  3.4119186
30      1  6.0795877
31      1  2.5414520
32      1  2.3853539
33      1  8.5676864
34      1  6.0742087
35      1  9.7760418
36      1  7.1662956
37      1  3.6204577
38      1  7.0437362
39      1  1.2627534
40      1  5.3347365
41      1  7.2839945
42      1  3.1837129
43      1  4.9894090
44      1  9.9235388
45      1  1.1274604
46      1  3.3649279
47      1  2.0999076
48      1  2.2575926
49      1  1.8454953
50      1  2.8895249
51      2  4.6287768
52      2  2.5844105
53      2 15.0851098
54      2  7.9826031
55      2  3.7372436
56      2  3.1805337
57      2  3.2847155
58      2  6.4770257
59      2  0.3777277
60      2  2.7061537
61      2  9.2341045
62      2  5.3303552
63      2  3.3224427
64      2  6.4391640
65      2  2.6990366
66      2  3.1454953
67      2  2.3661033
68      2  8.7384057
69      2  3.2240407
70      2  7.6678349
71      2  8.5490952
72      2 -3.5020631
73      2 10.1986100
74      2  1.8458824
75      2  7.7267376
76      2 -1.0470594
77      2  5.8402022
78      2 13.7301076
79      2  4.2301757
80      2  6.1232703
81      2 -1.5290626
82      2  0.6754454
83      2 12.7269561
84      2  9.2303134
85      2  7.2066353
86      2 11.7436247
87      2  1.3246189
88      2 13.1009005
89      2 13.8964064
90      2  4.4684005
91      2  4.1861256
92      2  9.0239456
93      2  6.5067711
94      2  7.9104612
95      2 14.3794221
96      2  4.4405906
97      2 12.6840010
98      2  3.5826331
99      2 11.6056682
100     2  5.5633731

attr(,"class")
[1] "SimulationResult"

Solution: implement generic function print

Example - Step 3: Packaging

Generic function print:

• Code
• Roxygen
• Output

print.SimulationResult <- function(x, ...) {
    args <- list(n1 = x$n1, n2 = x$n2,
        mean1 = x$mean1, mean2 = x$mean2, sd1 = x$sd1, sd2 = x$sd2)

    print(list(
        args = format(args),
        data = dplyr::tibble(x$data)
    ), ...)
}
x

#' @title
#' Print Simulation Result
#'
#' @description
#' Generic function to print a `SimulationResult` object.
#'
#' @param x a \code{SimulationResult} object to print.
#' @param ... further arguments passed to or from other methods.
#'
#' @examples
#' x <- getSimulatedTwoArmMeans(n1 = 50, n2 = 50, mean1 = 5,
#'      mean2 = 7, sd1 = 3, sd2 = 4, seed = 123)
#' print(x)
#'
#' @export

$args
   n1    n2 mean1 mean2   sd1   sd2
 "50"  "50"   "5"   "7"   "3"   "4"

$data
# A tibble: 100 × 2
   group values
   <dbl>  <dbl>
 1     1   6.81
 2     1   6.70
 3     1   5.06
 4     1   4.84
 5     1   1.89
 6     1   6.88
 7     1   2.36
 8     1   2.70
 9     1  11.0
10     1   8.45
# ℹ 90 more rows

Exercise

Photo CC0 by Pixabay on pexels.com

Preparation

1. Download the unfinished R package simulatr
2. Extract the package zip file
3. Open the project with RStudio
4. Complete the tasks below

Tasks

• Task 1
• Task 2
• Task 3
• Task 4
• Task 5
• Task 6
• Task 7

Add assertions to improve the usability and user experience

Tip on assertions

Use the package checkmate to validate input arguments.

Example:

playWithAssertions <- function(n1) {
  checkmate::assertInt(n1, lower = 1)
}
playWithAssertions(-1)

Error in playWithAssertions(-1) : Assertion on ‘n1’ failed: Element 1 is not >= 1.

Add three additional results:

1. n total,
2. creation time, and
3. allocation ratio

Tip on creation time

Sys.time(), format(Sys.time(), '%B %d, %Y'), Sys.Date()

Add an additional result: t.test result

Add an optional alternative argument and pass it through t.test:

alternative = c("two.sided", "less", "greater")

Implement the generic functions print and plot.

Tip on print

Use the plot example function from above and extend it.

Tip on plot

Use R base plot or ggplot2 to create a grouped boxplot of the fake data.

Optional extra tasks:

• Implement the generic functions summary and cat

• Implement the function kable known from the package knitr as generic. Tip: use

  kable <- function(x) UseMethod("kable")

  to define kable as generic

Optional extra task¹:

Document your functions with Roxygen2

1. If you are already familiar with Roxygen2

References

• Gillespie, C., & Lovelace, R. (2017). Efficient R Programming: A Practical Guide to Smarter Programming. O’Reilly UK Ltd. [Book | Online]
• Grolemund, G. (2014). Hands-On Programming with R: Write Your Own Functions and Simulations (1. Aufl.).
  O’Reilly and Associates. [Book | Online]
• Rupp, C., & SOPHISTen, die. (2009). Requirements-Engineering und -Management: Professionelle, iterative Anforderungsanalyse für die Praxis (5. Ed.). Carl Hanser Verlag GmbH & Co. KG. [Book]
• Wickham, H. (2015). R Packages: Organize, Test, Document, and Share Your Code (1. Aufl.). O’Reilly and Associates. [Book | Online]
• Wickham, H. (2019). Advanced R, Second Edition.
  Taylor & Francis Ltd. [Book | Online]
