3 An R Package Engineering Workflow

openstatsware Workshop: Good Software Engineering Practice for R Packages

Daniel

October 16, 2023

Motivation

From an idea to a production-grade R package

Example scenario: in your daily work, you notice that you need certain one-off scripts again and again.

The idea of creating an R package was born because you understood that “copy and paste” R scripts is inefficient, and on top of that, you want to share your helpful R functions with colleagues and the world…

Professional Workflow

Photo CC0 by ELEVATE on pexels.com

Typical work steps

1. Idea
2. Concept creation
3. Validation planning
4. Specification:
   1. User Requirements Spec (URS),
   2. Functional Spec (FS), and
   3. Software Design Spec (SDS)

5. R package programming
6. Documented verification
7. Completion of formal validation
8. R package release
9. Use in production
10. Maintenance

Workflow in Practice

Photo CC0 by Chevanon Photography on pexels.com

Frequently Used Workflow in Practice

1. Idea
2. R package programming
3. Use in production
4. Bug fixing
5. Use in production

6. Bug fixing + Documentation
7. Use in production
8. Bug fixing + Further development
9. Use in production
10. Bug fixing + …

Bad practice!

Why?

Why practice good engineering?

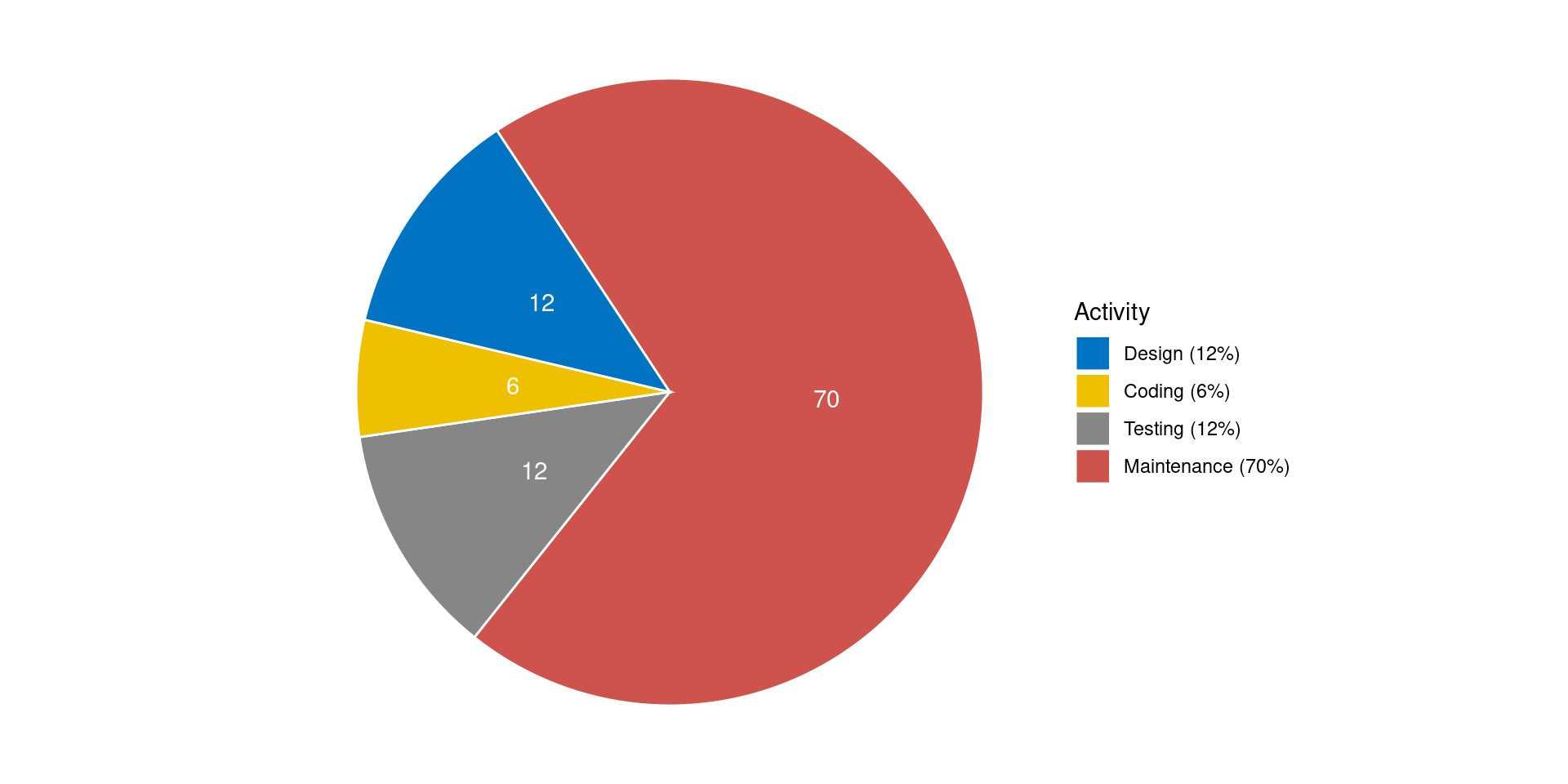

Cost distribution among software process activities

doi:10.14569/IJACSA.2020.0110375

Why practice good engineering?

Origin of errors in system development

Boehm, B. (1981). Software Engineering Economics. Prentice Hall.

Why practice good engineering?

• Don’t waste time on maintenance
• Be faster with release on CRAN
• Don’t waste time with inefficient and buggy further development

• Fulfill regulatory requirements¹
• Save refactoring time when the Proof-of-Concept (PoC) becomes the release version
• You don’t have to be shy any longer about inviting other developers to contribute to the package on GitHub

1. See also Ensuring Quality

Why practice good engineering?

Invest time in

• requirements analysis,
• software design, and
• architecture…

… but in many cases the workflow must be workable for a single developer or a small team.

Workable Workflow

Photo CC0 by Kateryna Babaieva on pexels.com

Suggestion for a Workable Workflow

1. Idea
2. Design docs
3. R package programming
4. Quality check (see Ensuring Quality)
5. Publication (see Publication)
6. Use in production

Example - Step 1: Idea

Let’s assume that you used some lines of code to create simulated data in multiple projects:

dat <- data.frame(
    group = c(rep(1, 50), rep(2, 50)),
    values = c(
        rnorm(n = 50, mean = 8, sd = 12),
        rnorm(n = 50, mean = 14, sd = 11)
    )
)

Idea: put the code into a package

Example - Step 2: Design docs

1. Describe the purpose and scope of the package
2. Analyse and describe the requirements in clear and simple terms (“prose”)

Obligation level	Key word1	Description
Duty	must, shall	“must have”
Desire	should	“nice to have”
Intention	may	“optional”

1. Rupp, C., & SOPHISTen, die. (2009). Requirements-Engineering und -Management: Professionelle, iterative Anforderungsanalyse für die Praxis (5. Ed.). Carl Hanser Verlag GmbH & Co. KG. See also: plainlanguage.gov

Example - Step 2: Design docs

Purpose and Scope

The R package simulatr shall enable the creation of reproducible fake data.

Package Requirements

simulatr shall provide a function to generate normal distributed random data for two independent groups. The function must allow flexible definition of sample size per group, mean per group, standard deviation per group. The reproducibility of the simulated data must be ensured via an optional seed. It should be possible to print the function result. The package may also facilitate graphical presentation of the simulated data.

Example - Step 2: Design docs

Useful formats / tools for design docs:

• R Markdown¹ (*.Rmd)
• Quarto¹ (*.qmd)
• Overleaf²
• draw.io³

UML Diagram

1. Based on Markdown, the easy-to-use markup language

2. The easy to use, online, collaborative LaTeX editor

3. A picture is worth a thousand words

Example - Step 3: Packaging

R package programming

1. Create basic package project (see R Packages)
2. C&P existing R scripts (one-off scripts, prototype functions) and refactor¹ it if necessary
3. Create R generic functions
4. Document all functions

1. See also Ensuring Quality

Example - Step 3: Packaging

One-off script as starting point:

sim.data <- function(n1, n2, m1, m2, s1, s2) {
    data.frame(
        group = c(rep(1, n1), rep(2, n2)),
        values = c(
            rnorm(n = n1, mean = m1, sd = s1),
            rnorm(n = n2, mean = m2, sd = s2)
        )
    )
}

Example - Step 3: Packaging

Refactored script:

getSimulatedTwoArmMeans <- function(n1, n2, mean1, mean2, sd1, sd2) {
    data.frame(
        group = c(rep(1, n1), rep(2, n2)),
        values = c(
            rnorm(n = n1, mean = mean1, sd = sd1),
            rnorm(n = n2, mean = mean2, sd = sd2)
        )
    )
}

Almost all functions, arguments, and objects should be self-explanatory due to their names.

Example - Step 3: Packaging

Define that the result is a list¹ which is defined as class²:

getSimulatedTwoArmMeans <- function(n1, n2, mean1, mean2, sd1, sd2) {
    result <- list(n1 = n1, n2 = n2,
         mean1 = mean1, mean2 = mean2, sd1 = sd1, sd2 = sd2)
    result$data <- data.frame(
        group = c(rep(1, n1), rep(2, n2)),
        values = c(
            rnorm(n = n1, mean = mean1, sd = sd1),
            rnorm(n = n2, mean = mean2, sd = sd2)
        )
    )
    # set the class attribute
    result <- structure(result, class = "SimulationResult")
    return(result)
}

1. It’s common practice to add the function arguments to the result \(\rightarrow\) should be a list or class

2. To implement generics, the result must be a class

Example - Step 3: Packaging

The output is impractical, e.g., we need to scroll down:

x <- getSimulatedTwoArmMeans(n1 = 50, n2 = 50, mean1 = 5, mean2 = 7, sd1 = 3, sd2 = 4)
x

$n1
[1] 50

$n2
[1] 50

$mean1
[1] 5

$mean2
[1] 7

$sd1
[1] 3

$sd2
[1] 4

$data
    group     values
1       1  7.1141343
2       1  4.9315856
3       1  6.8486559
4       1  5.4232044
5       1  2.0878172
6       1  7.9193614
7       1  5.0556225
8       1  3.4090045
9       1  9.7855215
10      1  3.8303040
11      1  3.7302685
12      1  4.3866876
13      1  9.8628574
14      1  4.1734530
15      1  2.6518951
16      1  2.2552217
17      1 11.0663756
18      1  3.9420508
19      1  2.7530683
20      1  1.8982550
21      1  9.7836621
22      1  7.7106822
23      1  1.4399343
24      1  3.3501130
25      1  4.2583536
26      1  3.8472150
27      1  0.2564559
28      1  6.5326474
29      1  6.5880382
30      1  9.4028417
31      1 -0.9343407
32      1  1.9990465
33      1  4.0288828
34      1  7.4840710
35      1  0.1842904
36      1  5.9709388
37      1  7.6466984
38      1  9.3550466
39      1  2.0881370
40      1 -2.1755447
41      1  2.9977860
42      1  6.7294280
43      1  8.3300580
44      1  4.2954388
45      1  2.6732828
46      1  8.7928899
47      1  1.3333301
48      1  0.6293590
49      1  9.5145804
50      1 11.6575330
51      2  2.4621112
52      2 10.3836529
53      2  4.5212149
54      2  3.9959644
55      2  4.5571831
56      2  1.7348850
57      2  4.0642302
58      2  6.3167981
59      2  1.4109089
60      2  6.9872869
61      2 12.2999664
62      2 10.4135432
63      2  8.2688656
64      2  8.3836911
65      2 10.0665325
66      2  6.8688208
67      2  0.6668342
68      2  3.5497866
69      2  6.5461608
70      2  9.0016588
71      2 -0.6333340
72      2  5.9230671
73      2  9.8329140
74      2  6.6980313
75      2  2.8278715
76      2  9.7458649
77      2 15.4828345
78      2  7.0957971
79      2  1.5220685
80      2  1.9195722
81      2  9.9000047
82      2  1.4549744
83      2  6.6066112
84      2  8.0371548
85      2 10.1152841
86      2 12.3816661
87      2  4.7092046
88      2 12.5869406
89      2 11.9338095
90      2  9.2895885
91      2  4.9470729
92      2  2.4782172
93      2  5.0117435
94      2 12.4354892
95      2  7.2910415
96      2  2.7287502
97      2  3.4961628
98      2  9.4721105
99      2  8.7174763
100     2  6.7803903

attr(,"class")
[1] "SimulationResult"

Solution: implement generic function print

Example - Step 3: Packaging

Generic function print:

• Code
• Roxygen
• Output

print.SimulationResult <- function(x, ...) {
    args <- list(n1 = x$n1, n2 = x$n2,
        mean1 = x$mean1, mean2 = x$mean2, sd1 = x$sd1, sd2 = x$sd2)

    print(list(
        args = format(args),
        data = dplyr::tibble(x$data)
    ), ...)
}
x

#' @title
#' Print Simulation Result
#'
#' @description
#' Generic function to print a `SimulationResult` object.
#'
#' @param x a \code{SimulationResult} object to print.
#' @param ... further arguments passed to or from other methods.
#'
#' @examples
#' x <- getSimulatedTwoArmMeans(n1 = 50, n2 = 50, mean1 = 5,
#'      mean2 = 7, sd1 = 3, sd2 = 4, seed = 123)
#' print(x)
#'
#' @export

$args
   n1    n2 mean1 mean2   sd1   sd2
 "50"  "50"   "5"   "7"   "3"   "4"

$data
# A tibble: 100 × 2
   group values
   <dbl>  <dbl>
 1     1   7.11
 2     1   4.93
 3     1   6.85
 4     1   5.42
 5     1   2.09
 6     1   7.92
 7     1   5.06
 8     1   3.41
 9     1   9.79
10     1   3.83
# ℹ 90 more rows

Exercise

Photo CC0 by Pixabay on pexels.com

Preparation

1. Download the unfinished R package simulatr
2. Extract the package zip file
3. Open the project with RStudio
4. Complete the tasks below

Tasks

• Task 1
• Task 2
• Task 3
• Task 4
• Task 5
• Task 6
• Task 7

Add assertions to improve the usability and user experience

Tip on assertions

Use the package checkmate to validate input arguments.

Example:

playWithAssertions <- function(n1) {
  checkmate::assertInt(n1, lower = 1)
}
playWithAssertions(-1)

Error in playWithAssertions(-1) : Assertion on ‘n1’ failed: Element 1 is not >= 1.

Add three additional results:

1. n total,
2. creation time, and
3. allocation ratio

Tip on creation time

Sys.time(), format(Sys.time(), '%B %d, %Y'), Sys.Date()

Add an additional result: t.test result

Add an optional alternative argument and pass it through t.test:

alternative = c("two.sided", "less", "greater")

Implement the generic functions print and plot.

Tip on print

Use the plot example function from above and extend it.

Tip on plot

Use R base plot or ggplot2 to create a grouped boxplot of the fake data.

Optional extra tasks:

• Implement the generic functions summary and cat

• Implement the function kable known from the package knitr as generic. Tip: use

  kable <- function(x) UseMethod("kable")

  to define kable as generic

Optional extra task¹:

Document your functions with Roxygen2

1. If you are already familiar with Roxygen2

References

• Gillespie, C., & Lovelace, R. (2017). Efficient R Programming: A Practical Guide to Smarter Programming. O’Reilly UK Ltd. [Book | Online]
• Grolemund, G. (2014). Hands-On Programming with R: Write Your Own Functions and Simulations (1. Aufl.).
  O’Reilly and Associates. [Book | Online]
• Rupp, C., & SOPHISTen, die. (2009). Requirements-Engineering und -Management: Professionelle, iterative Anforderungsanalyse für die Praxis (5. Ed.). Carl Hanser Verlag GmbH & Co. KG. [Book]
• Wickham, H. (2015). R Packages: Organize, Test, Document, and Share Your Code (1. Aufl.). O’Reilly and Associates. [Book | Online]
• Wickham, H. (2019). Advanced R, Second Edition.
  Taylor & Francis Ltd. [Book | Online]
