4 Ensuring Quality

R/Pharma workshop: Good Software Engineering Practice for R Packages

Joe Zhu

October 28, 2024

Apply Clean Code Rules

Why is Clean Code important?

• Maintainability: The code is readable and understandable and has a reduced complexity, i.e., it’s easier to fix bugs
• Extensibility: The architecture is simpler, cleaner, and more expressive, i.e., it’s easier to extend the capabilities and the risk of introducing bugs is reduced
• Performance: The code often runs faster, uses less memory, or is easier to optimize

Example: Clean Code Rules - Step by Step

This script breaks all common clean code rules:

y=function(x){
  s1=0
  for(v1 in x){s1=s1+v1}
  m1=s1/length(x)
  i=ceiling(length(x)/2)
  if(length(x) %% 2 == 0){i=c(i,i+1)}
  s2=0
  for(v2 in i){s2=s2+x[v2]}
  m2=s2/length(i)
  c(m1,m2)
}
y(c(1:7, 100))

[1] 16.0  4.5

We now refactor it by applying clean code rules…

Example: CCR#1

y=function(x){
  s1=0
  for(v1 in x){s1=s1+v1}
  m1=s1/length(x)
  i=ceiling(length(x)/2)
  if(length(x) %% 2 == 0){i=c(i,i+1)}
  s2=0
  for(v2 in i){s2=s2+x[v2]}
  m2=s2/length(i)
  c(m1,m2)
}
y(c(1:7, 100))

[1] 16.0  4.5

CCR#1 Naming: Are the names of the variables, functions, and classes descriptive and meaningful?

Example: CCR#1

getMeanAndMedian=function(x){
    sum1=0
    for(value in x){sum1=sum1+value}
    meanValue=sum1/length(x)
    centerIndices=ceiling(length(x)/2)
    if(length(x) %% 2 == 0){
        centerIndices=c(centerIndices,centerIndices+1)
    }
    sum2=0
    for(centerIndex in centerIndices){sum2=sum2+x[centerIndex]}
    medianValue=sum2/length(centerIndices)
    c(meanValue,medianValue)
}

CCR#1 Naming

CCR#2 Formatting: Are indentation, spacing, and bracketing consistent, i.e., is the code easy to read

Example: CCR#2

getMeanAndMedian <- function(x) {
    sum1 <- 0
    for (value in x) {
        sum1 <- sum1 + value
    }
    meanValue <- sum1 / length(x)
    centerIndices <- ceiling(length(x) / 2)
    if (length(x) %% 2 == 0) {
        centerIndices <- c(
          centerIndices, centerIndices + 1)
    }
    sum2 <- 0
    for (centerIndex in centerIndices) {
        sum2 <- sum2 + x[centerIndex]
    }
    medianValue <- sum2 / length(centerIndices)
    c(meanValue, medianValue)
}

CCR#2 Formatting

CCR#3 Simplicity: Did you keep the code as simple and straightforward as possible, i.e., did you avoid unnecessary complexity

Example: CCR#3

Note:

• From the Simplicity rule also follows that large source files should be split into multiple files
• General guideline: keeping the number of lines to less than 1,000 lines per file can help maintain code readability and manageability

Example: CCR#3

getMeanAndMedian <- function(x) {
    meanValue <- sum(x) / length(x)
    centerIndices <- ceiling(length(x) / 2)
    if (length(x) %% 2 == 0) {
        centerIndices <- c(centerIndices, centerIndices + 1)
    }
    medianValue <- sum(x[centerIndices]) / length(centerIndices)
    c(meanValue, medianValue)
}

CCR#3 Simplicity

CCR#4 Single Responsibility Principle (SRP): does each function have only a single, well-defined purpose

Example: CCR#4

getMean <- function(x) {
    sum(x) / length(x)
}

isLengthAnEvenNumber <- function(x) {
    length(x) %% 2 == 0
}

getMedian <- function(x) {
    centerIndices <- ceiling(length(x) / 2)
    if (isLengthAnEvenNumber(x)) {
        centerIndices <- c(centerIndices, centerIndices + 1)
    }
    sum(x[centerIndices]) / length(centerIndices)
}

CCR#4 Single Responsibility Principle (SRP)

CCR#5 Don’t Repeat Yourself (DRY): Did you avoid duplication of code, either by reusing existing code or creating functions

Example: CCR#5

CCR#5: DRY

Suppose you have a code block that performs the same calculation multiple times:

result1 <- 2 * 3 + 4
result2 <- 2 * 5 + 4
result3 <- 2 * 7 + 4

Create a function to encapsulate this calculation and reuse it multiple times:

calculate <- function(x) {
  2 * x + 4
}

result1 <- calculate(3)
result2 <- calculate(5)
result3 <- calculate(7)

Example: CCR#5

getMean <- function(x) {
    sum(x) / length(x)
}

isLengthAnEvenNumber <- function(x) {
    length(x) %% 2 == 0
}

getMedian <- function(x) {
    centerIndices <- ceiling(length(x) / 2)
    if (isLengthAnEvenNumber(x)) {
        centerIndices <- c(centerIndices, centerIndices + 1)
    }
    getMean(x[centerIndices])
}

CCR#5 Don’t Repeat Yourself (DRY)

CCR#6 Comments: Did you use comments to explain the purpose of code blocks and to clarify complex logic

Example: CCR#6

# returns the mean of x
getMean <- function(x) {
    sum(x) / length(x)
}

# returns TRUE if the length of x is
# an even number; FALSE otherwise
isLengthAnEvenNumber <- function(x) {
    length(x) %% 2 == 0
}

# returns the median of x
getMedian <- function(x) {
    centerIndices <- ceiling(length(x) / 2)
    if (isLengthAnEvenNumber(x)) {
        centerIndices <- c(centerIndices,
             centerIndices + 1)
    }
    getMean(x[centerIndices])
}

CCR#6 Comments

CCR#7 Error Handling: Did you include error handling code to gracefully handle exceptions and unexpected situations

getMean(c("a", "b", "c"))

Error in sum(x) : invalid ‘type’ (character) of argument

Example: CCR#7

#' returns the mean of x
getMean <- function(x) {
    checkmate::assertNumeric(x)
    sum(x) / length(x)
}
#' returns TRUE if the length of x is an even number; FALSE otherwise
isLengthAnEvenNumber <- function(x) {
    checkmate::assertVector(x)
    length(x) %% 2 == 0
}
#' returns the median of x
getMedian <- function(x) {
    checkmate::assertNumeric(x)
    centerIndices <- ceiling(length(x) / 2)
    if (isLengthAnEvenNumber(x)) {
        centerIndices <- c(centerIndices, centerIndices + 1)
    }
    getMean(x[centerIndices])
}

CCR#7 Error Handling

Summary of Clean Code Rules

1. Naming: Use descriptive and meaningful names for variables, functions, and classes
2. Formatting: Adhere to consistent indentation, spacing, and bracketing to make the code easy to read
3. Simplicity: Keep the code as simple and straightforward as possible, avoiding unnecessary complexity
4. Single Responsibility Principle (SRP): Each function should have a single, well-defined purpose
5. Don’t Repeat Yourself (DRY): Avoid duplication of code, either by reusing existing code or creating functions

Summary of Clean Code Rules

6. Comments: Use comments to explain the purpose of code blocks and to clarify complex logic
7. Error Handling: Include error handling code to gracefully handle exceptions and unexpected situations
8. Test-Driven Development (TDD): Write tests for your code to ensure it behaves as expected and to catch bugs early
9. Refactoring: Regularly refactor your code to keep it clean, readable, and maintainable
10. Code Review: Have other team members review your code to catch potential issues and improve its quality

How to apply Clean Code Rules?

Recommended quality workflow for R packages:

• Follow the naming and styling guidelines (#1, #2)
• Continuously write tests and optimize the code coverage with help of tools (#7, #8)
• Document the package and functions (#6)
• Regularly refactor your code (#1 - #7, #9)
• Publish your code on GitHub and invite colleagues to contribute (#10)

Package Testing

CCR#8: TDD

Share Your Experience

Have you ever written unit tests for your code?

• Enter yes or no in the chat

Verification vs Validation

Verification:
Are we building the product right?

• The product meets a set of specified requirements
• Activities: reviews, inspections, and testing
• Goal: ensure that the product has been designed and implemented correctly

Validation:
Are we building the right product?

• Evaluate the product during or at the end of the development process
• Show that the product meet the specified requirements
• Goal: confirm that the product is fit for its intended purpose
  \(\rightarrow\) Refers back to the user’s needs

What are Unit Tests?

• Automated tests
• Record the expected output of a function using code
• Check individual units of code (functions or methods) for correctness
• Typically written by developers as part of the software development process
• Typically run automatically as part of a CI/CD pipeline
• Can be run before committing code changes

Why are unit tests important?

CCR#8: TDD

• Help to ensure that individual units of code are working correctly
• Ensure that changes to the codebase do not break existing functionality
• Express the desired behavior in a way that a human can understand
• Help to identify and fix bugs early on in the development process
• Save time and resources by catching issues before they become more difficult and costly to fix

Unit tests help to increase the reliability and maintainability of the code

What other important test types exist?

• Integration Testing: Test if different functions or scripts work together as expected
• Performance Testing: Analyze the performance of the implemented functions and check whether they meet the requirements (UR/UX)
• Snapshot Testing: Record the results in a separate human-readable file and compare it to the output during the test; useful for large/complex outputs and binary formats like plots

Testing in Practice

How to realize testing with R?

R package testthat

• Popular testing framework for R that is easy to learn and use
• Unit testing, integration testing, and snapshot testing supported
• Also performance testing, e.g., with help of microbenchmark package

Example: unit test passed

library(testthat)
expect_equal(getMean(c(1, 3, 2)), 2)

Example: unit test failed

expect_equal(getMean(c(1, 3, 2, NA)), 2)
expect_equal(getMedian(c(1, 3, 2)), 2)

Error: getMean(c(1, 3, 2, NA)) not equal to 2. Error: getMedian(c(1, 3, 2)) not equal to 2.

Investigating failed tests

#' returns the mean of x
getMean <- function(x, na.rm = TRUE) {
    checkmate::assertNumeric(x)
    sum(x, na.rm = na.rm) / length(x[!is.na(x)])
}
#' returns TRUE if the length of x is an even number; FALSE otherwise
isLengthAnEvenNumber <- function(x) {
    checkmate::assertVector(x)
    length(x[!is.na(x)]) %% 2 == 0
}
#' returns the median of x
getMedian <- function(x, na.rm = TRUE) {
    checkmate::assertNumeric(x)
    centerIndices <- ceiling(length(x[!is.na(x)]) / 2)
    if(anyNA(x) & !na.rm){
        centerIndices <- NA_real_
    } else if (isLengthAnEvenNumber(x)) {
        centerIndices <- c(centerIndices, centerIndices + 1)
    }
    getMean(sort(x)[centerIndices])
}

Re-evaluate tests

expect_equal(getMedian(c(1, 3, 2)), 2)
expect_equal(getMedian(c(1, 3, 2, NA), na.rm = FALSE), NA_real_)
expect_equal(getMean(c(1, 3, 2, NA)), 2)
expect_equal(getMean(c(1, 3, 2, NA), na.rm = FALSE), NA_real_)

testthat Comparisons Functions (1/2)

Function name	Does code…
expect_condition	fulfill a condition?
expect_equal	return the expected value?
expect_error	throw an error?
expect_false	return ‘FALSE’?
expect_gt	return a number greater than the expected value?
expect_gte	return a number greater or equal than the expected value?
expect_identical	return the expected value?
expect_invisible	return a invisible object?
expect_length	return a vector with the specified length?
expect_lt	return a number less than the expected value?
expect_lte	return a number less or equal than the expected value?
expect_mapequal	return a vector containing the expected values?
expect_message	show a message?
expect_named	return a vector with (given) names?

testthat Comparisons Functions (2/2)

Function name	Does code…
expect_no_condition	run without condition?
expect_no_error	run without error?
expect_no_message	run without message?
expect_no_warning	run without warning?
expect_output	print output to the console?
expect_s3_class	return an object inheriting from the expected S3 class?
expect_s4_class	return an object inheriting from the expected S4 class?
expect_setequal	return a vector containing the expected values?
expect_silent	execute silently?
expect_true	return ‘TRUE’?
expect_type	return an object inheriting from the expected base type?
expect_vector	return a vector with the expected size and/or prototype?
expect_visible	return a visible object?
expect_warning	throw warning?

How to check the package quality?

• pkgbuild: Tools needed to build R packages
• rcmdcheck: Run R CMD check from R and capture results
• devtools: Tools to make developing R packages easier, e.g., check() automatically builds and checks a source package, using all known best practices

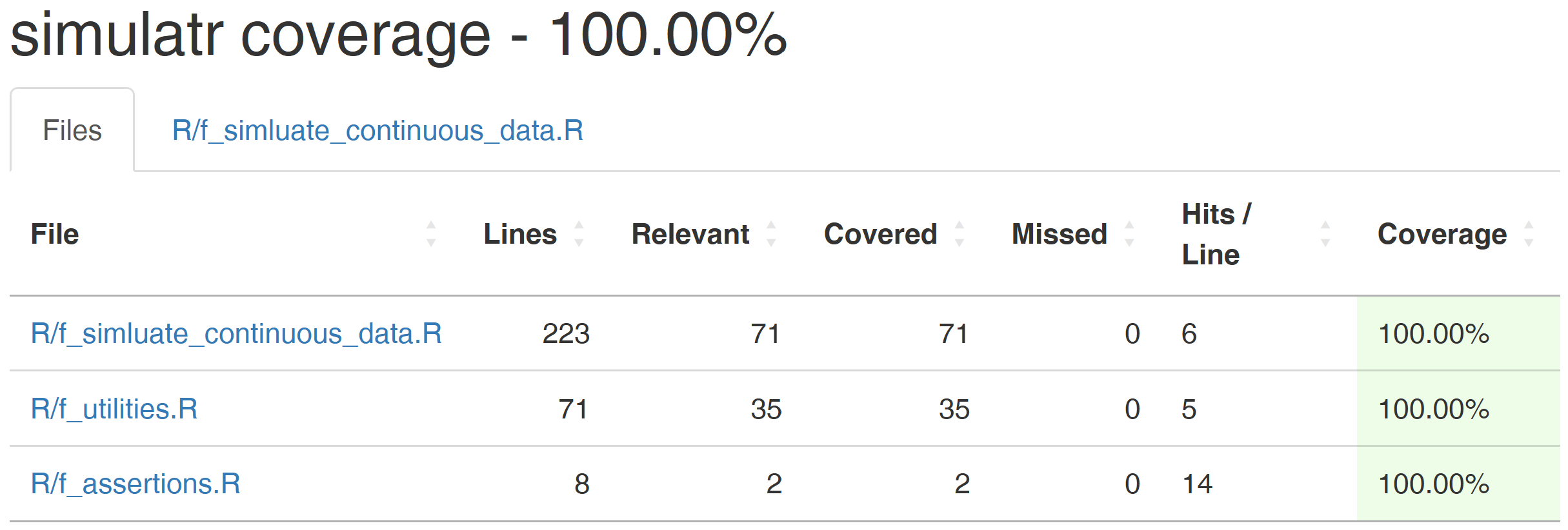

How to improve the test coverage?

covr: Track and report code coverage for your package

library(covr)
x <- package_coverage()
report(x)

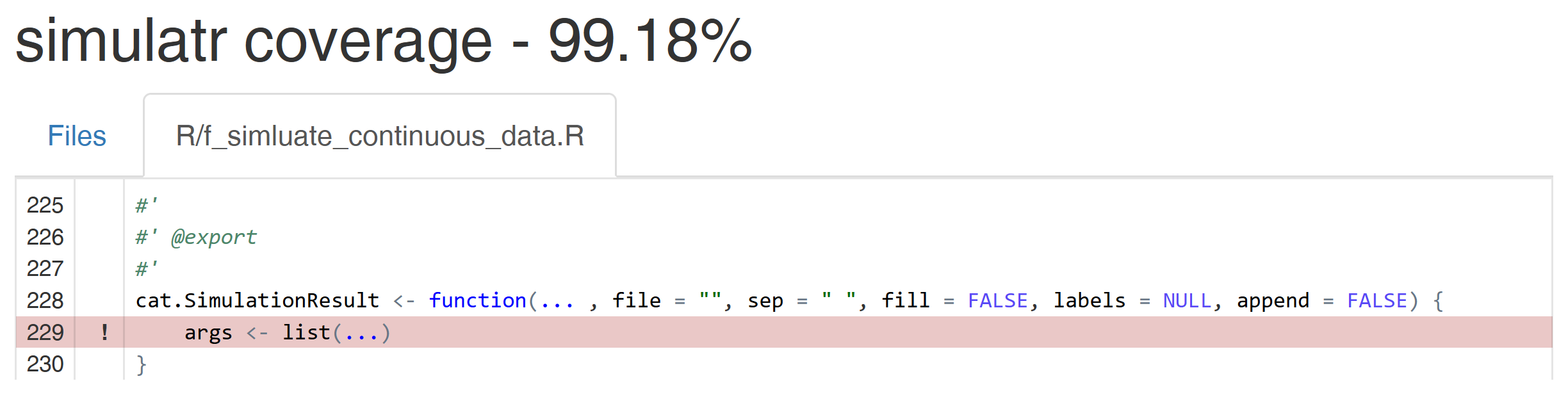

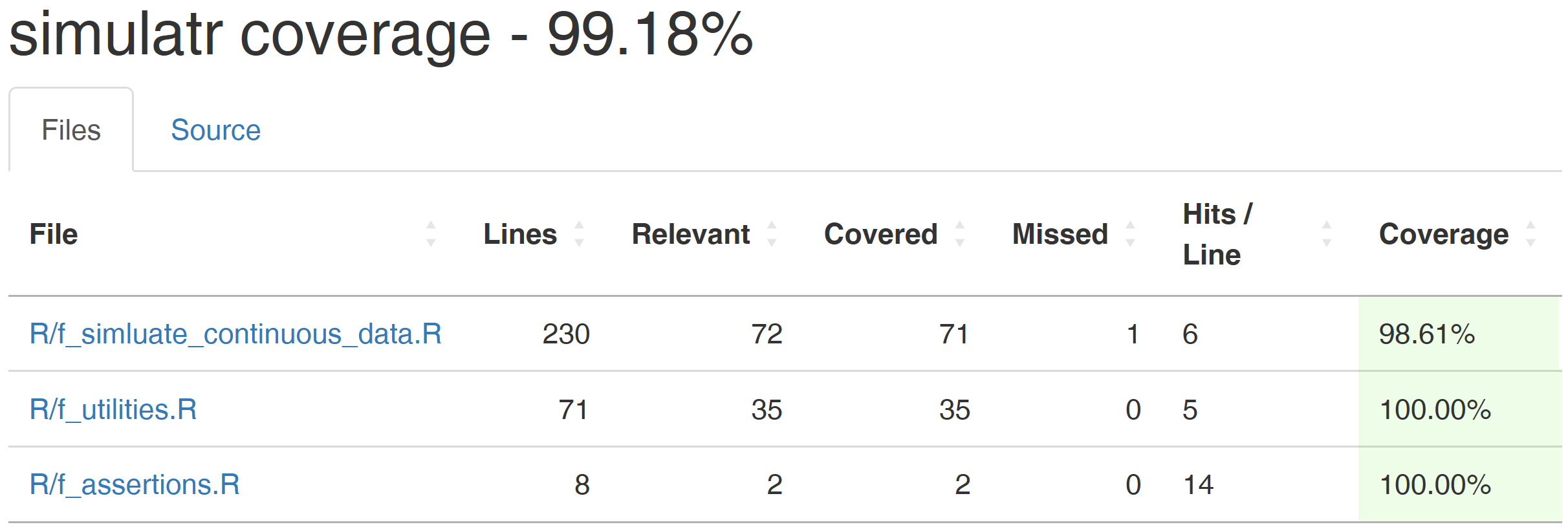

Example on test coverage

Let’s assume we have added a generic function to cat a simulation result:

#'
#' @export
#'
cat.SimulationResult <- function(... , file = "", sep = " ",
        fill = FALSE, labels = NULL, append = FALSE) {
    args <- list(...)
}

But we forgot to finalize the implementation and didn’t create unit tests.

Re-execution of

report(package_coverage())

then results in…

Example on test coverage

Example on test coverage

We can go into the details by clicking on a file name:

Code Style

CCR#2: Formatting

Why is Code Style important?

CCR#2: Formatting

• Make the code more readable, maintainable, and consistent
• Make it easier for others to understand and contribute to the codebase
• Adhering to a consistent code style can reduce the number of errors and make debugging simpler
• “Good coding style is like correct punctuation: you can manage without it, butitsuremakesthingseasiertoread.” (The tidyverse style guide)

How to optimize the code styling?

Two popular R packages support the tidyverse style guide:

• styler: interactively restyle selected text, files, or entire projects:
  • style_text
  • style_file
  • style_pkg
• lintr: perform automated checks to confirm that you conform to the style guide

The devtools function spell_check runs a spell check on text fields in the package description file, manual pages, and optionally vignettes.

Code Styler in RStudio

How to link the styler¹ package to a keyboard shortcut:

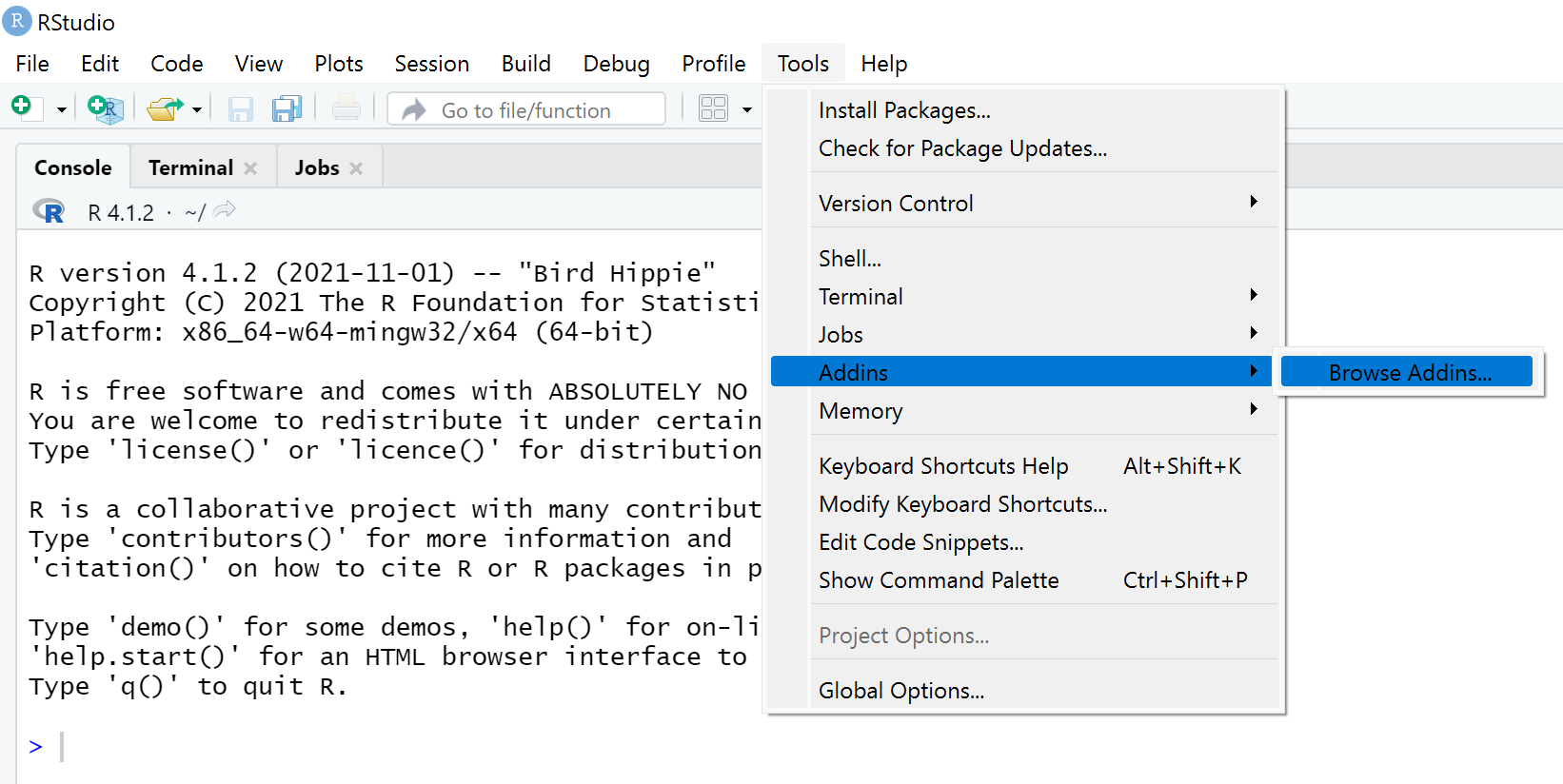

• Browse addins

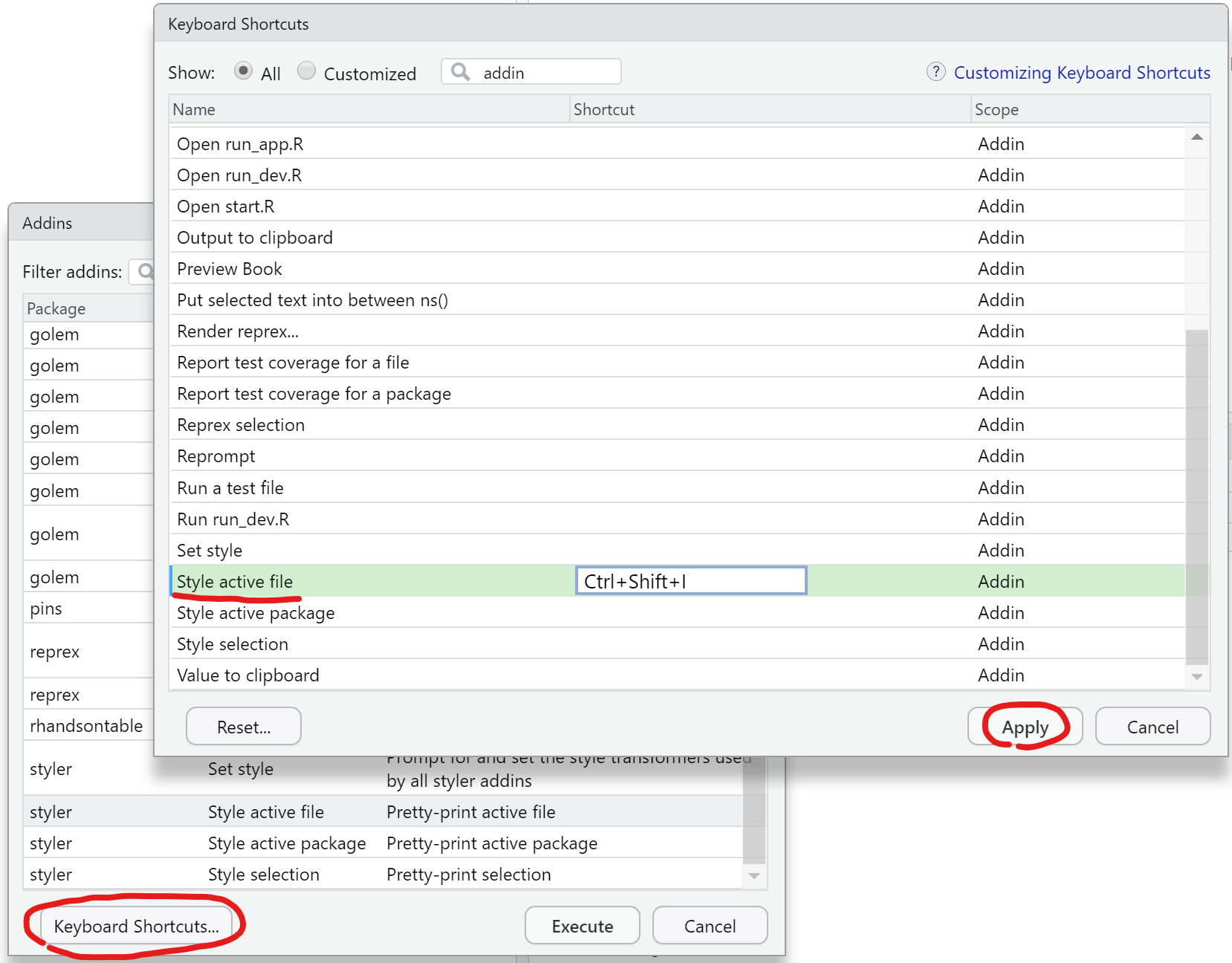

• Set keyboard shortcut

1. If not available, install it first

Exercise

Please install the following packages before we moving on

install.packages(c("DT", "htmltools",
  "testthat", "rlang", "checkmate", "covr", "styler", "devtools"))

Tasks

• Task 1
• Task 2
• Task 3
• Task 4

Take your local simulatr package project (see previous excercise) and refactor it, i.e., apply the linked clean code rules:

1. Optimize naming manually (CCR#1)
2. Use the styler package to optimize the formatting (CCR#2)
3. Check and correct where appropriate:
   • Simplicity (CCR#3)
   • Single Responsibility Principle (CCR#4)
   • Don’t Repeat Yourself (CCR#5)

1. Implement appropriate error handling (CCR#7) in the simulatr package
2. Add comments to explain the purpose of code blocks (CCR#6)
   • If it concerns exported functions use Roxygen2 notation
3. Check correct spelling with the devtools function spell_check()

Apply CCR#8 to the simulatr package project:

1. Add unit tests
2. Optimize your test coverage with help of the covr functions package_coverage and report

Check if your package is ready for release with the devtools function check()

References

• Cotton, R. (2017). Testing R Code (Illustrated Edition).
  Taylor & Francis Inc. [Book]
• Martin, R. (2008). Clean Code: A Handbook of Agile Software Craftsmanship (1st Edition). Prentice Hall. [Book]

License information

• Creators (initial authors): Friedrich Pahlke

• In the current version, changes were done by (later authors): Joe Zhu

• This work is licensed under the Creative Commons Attribution-ShareAlike 4.0 International License.

• The source files are hosted at github.com/openpharma/workshop-r-swe-rinpharma-2024, which is forked from the original version at github.com/RCONIS/user2024-tutorial-gswep.

• Important: To use this work you must provide the name of the creators (initial authors), a link to the material, a link to the license, and indicate if changes were made
