Create a Forest Plot from an rbmi Pool Object

Source: R/plot_forest.R
plot_forest.Rd

Takes an rbmi pool object and produces a publication-quality, three-panel forest plot using ggplot2 and patchwork. The plot displays treatment effect point estimates with confidence interval whiskers, an aligned table panel showing formatted estimates, and a p-value panel.

Usage

plot_forest(
  pool_obj,
  display = c("trt", "lsm"),
  ref_value = NULL,
  ci_level = NULL,
  arm_labels = NULL,
  title = NULL,
  text_size = 3,
  point_size = 3,
  show_pvalues = TRUE,
  font_family = NULL,
  panel_widths = NULL
)

Arguments

pool_obj

A pooled analysis object of class "pool", typically obtained from rbmi::pool() after calling analyse_mi_data().

display

Character string specifying the display mode. "trt" (the default) shows treatment differences across visits. "lsm" shows LS mean estimates by treatment arm with color-coded points.

ref_value

Numeric. The reference value for the vertical reference line. Default is 0 for display = "trt" and NULL (no line) for display = "lsm". Set explicitly to override.

ci_level

Numeric. Confidence level for CI labeling. If NULL (the default), extracted from pool_obj$conf.level. Falls back to 0.95 if neither is available.

arm_labels

Named character vector with elements "ref" and "alt" providing custom labels for the reference and treatment arms when display = "lsm". If NULL (the default), uses "Reference" and "Treatment".

title

Optional character string for the plot title.

text_size

Numeric. Text size for the table and p-value panels. Default is 3.

point_size

Numeric. Point size for the forest plot. Default is 3.

show_pvalues

Logical. Whether to display the p-value panel on the right side of the plot. Default is TRUE. Set to FALSE for a cleaner two-panel layout without p-values.

font_family

Optional character string specifying the font family for all text in the plot. When NULL (default), uses ggplot2's default font (typically sans-serif). Applied to all geom_text layers and the forest panel theme.

panel_widths

Optional numeric vector controlling the relative widths of the plot panels. When show_pvalues = TRUE, must be length 3 (table, forest, p-value panels). When show_pvalues = FALSE, must be length 2 (table, forest panels). When NULL (default), uses c(3, 4, 1.5) for 3-panel and c(3, 5) for 2-panel layouts.

Value

A patchwork/ggplot object that can be further customized using & theme() to modify all panels simultaneously.

Details

The function calls tidy_pool_obj() internally to parse the pool object, then constructs a three-panel composition:

  • Left panel: Visit labels and formatted estimate with CI text

  • Middle panel: Forest plot with point estimates and CI whiskers

  • Right panel: Formatted p-values

Display modes:

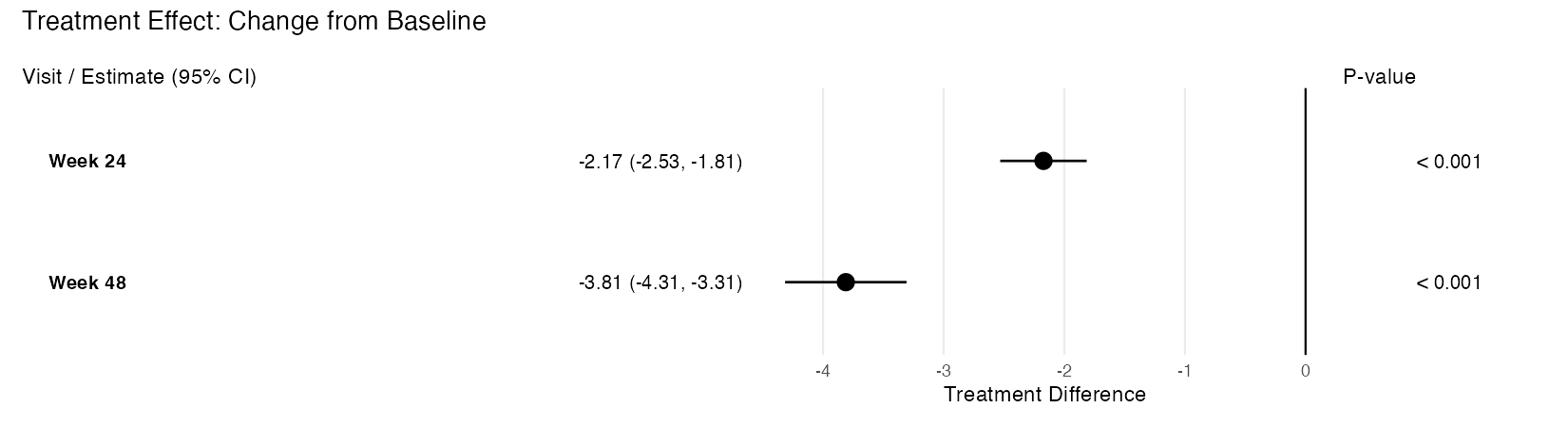

  • "trt" – Treatment differences with a reference line at zero (or custom ref_value). Significant results (CI excludes reference) are shown as filled circles; non-significant as open circles.

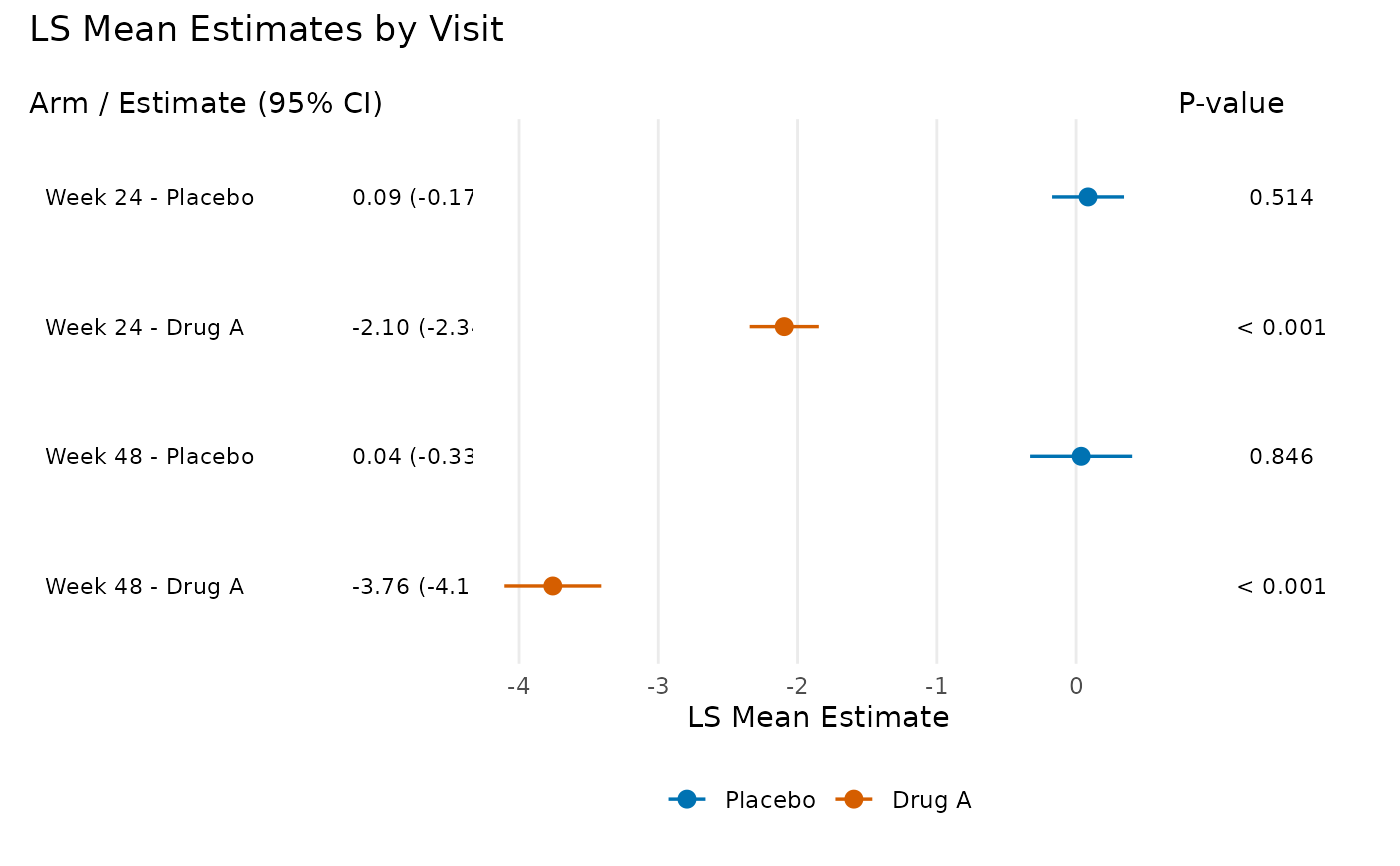

  • "lsm" – LS mean estimates by treatment arm, color-coded using the Okabe-Ito colorblind-friendly palette (blue for reference, vermilion for treatment). Points are dodged vertically within each visit.

Customization: The returned patchwork object supports & theme() for applying theme changes to all panels. For example: plot_forest(pool_obj) & theme(text = element_text(size = 14)).

Example output (treatment difference mode):

See also

Examples

# \donttest{
if (requireNamespace("ggplot2", quietly = TRUE) &&
    requireNamespace("patchwork", quietly = TRUE)) {
  library(rbmi)
  data("ADMI", package = "rbmiUtils")
  ADMI$TRT <- factor(ADMI$TRT, levels = c("Placebo", "Drug A"))
  ADMI$USUBJID <- factor(ADMI$USUBJID)
  ADMI$AVISIT <- factor(ADMI$AVISIT)

  vars <- set_vars(
    subjid = "USUBJID", visit = "AVISIT", group = "TRT",
    outcome = "CHG", covariates = c("BASE", "STRATA", "REGION")
  )
  method <- method_bayes(
    n_samples = 20,
    control = control_bayes(warmup = 20, thin = 1)
  )

  ana_obj <- analyse_mi_data(ADMI, vars, method, fun = ancova)
  pool_obj <- pool(ana_obj)

  # Treatment difference forest plot
  plot_forest(pool_obj, arm_labels = c(ref = "Placebo", alt = "Drug A"))

  # LSM display with custom panel widths
  plot_forest(
    pool_obj,
    display = "lsm",
    arm_labels = c(ref = "Placebo", alt = "Drug A"),
    title = "LS Mean Estimates by Visit",
    panel_widths = c(3, 5, 1.5)
  )
}
#> Warning: Data contains 100 imputations but method expects 20. Using first 20
#> imputations.

# }
