To get started, you can easily run and test ClinSight by using the function clinsight::test_clinsight(). This function loads all data in a temporary folder that will be cleaned up after use. If no data is provided, “dummy” data will be used to run the application. Note that this function is only meant for testing and development, and is a wrapper around clinsight::run_app(), the primary function to launch the app. Executing clinsight::run_app() directly will create a database in the working directory that will record user actions such as the study data’s review status. This database is required for deployment in a production environment.

# Not run:
# If evaluated, this will run ClinSight with internal test data
test_clinsight()

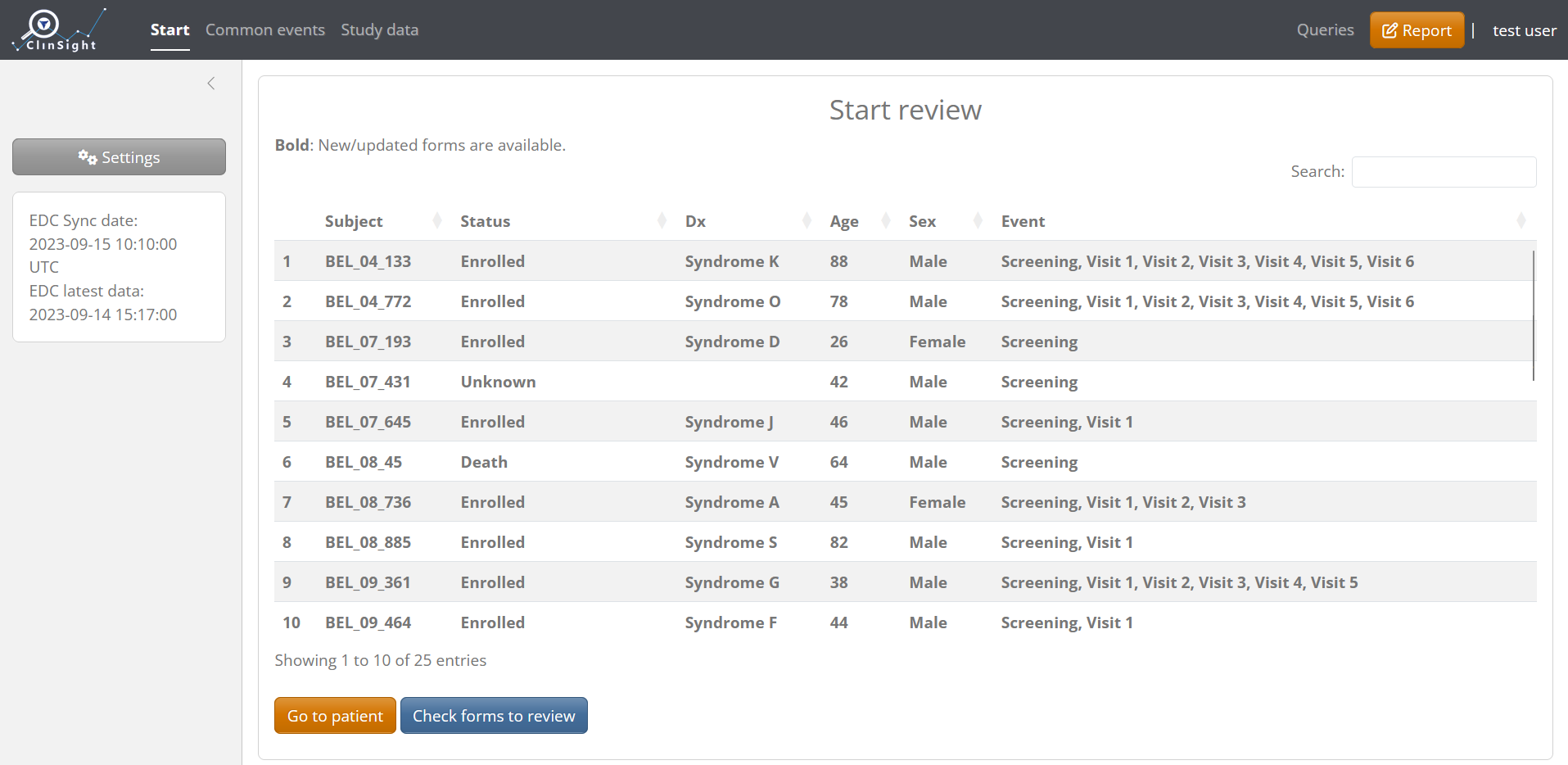

Once launched, the Start screen will look like the following:

Create custom data and metadata

In order to use custom study data with ClinSight, first the raw data needs to be in the correct format (see below). Secondly, a ClinSight metadata file needs to be prepared so that the app knows how to use the raw data. (see create_clinsight_metadata() and get_metadata(). Then, the raw data needs to be merged with the metadata file (using merge_meta_with_data()) to create custom ClinSight-compatible input data. All details about the metadata template and how to customize it can be found in the vignette("Metadata").

Raw data structure

Raw study data is expected to be in ‘long format’ with all columns being of type character. Below is a table with the required columns. Note that the column names shown below are flexible since they can be customized (renamed) using the ‘column_names’ tab from the metadata template as needed.

Name Description
site_code Identifier for study site.
subject_id Unique identifier for a subject
event_id Identifies events within a study, such as study visits.
event_date The date of the event. Should be convertible from a character vector to a valid date within R.
event_repeat Counter containing a sequence number that increments if an event_id is repeated within the same subject.
form_id Identifier for each form. Can be mostly ignored, since new form identifiers are set within ClinSight metadata.
form_repeat Counter containing a sequence number that increments if a form is repeated within the same subject.
var Name of the variable to use in ClinSight. Longer/more appropriate names will be specified in metadata.
item_value Value of the variable (var) in question.
edit_date_time The time at which the value was last edited. Important for efficient reviewing of the data within ClinSight.

As an example, we will show raw data pre-installed with the package that can be converted to ClinSight-compatible input data.

raw_data <- get_raw_csv_data(system.file("raw_data", package = "clinsight"))
#> Adding synch time ' 2025-05-20 16:27:52 UTC ' as the attribute 'synch_time' to the data set.
head(raw_data)
#> # A tibble: 6 × 13
#>   SiteCode SubjectId  EventSeq EventId EventName EventDate FormId SubjectFormSeq
#>   <chr>    <chr>      <chr>    <chr>   <chr>     <chr>     <chr>  <chr>
#> 1 BEL08    BEL_08_885 1        COMMON… Any visit 2023-08-… AE     1
#> 2 BEL08    BEL_08_885 1        COMMON… Any visit 2023-08-… AE     1
#> 3 BEL08    BEL_08_885 1        COMMON… Any visit 2023-08-… AE     1
#> 4 BEL08    BEL_08_885 1        COMMON… Any visit 2023-08-… AE     1
#> 5 BEL08    BEL_08_885 1        COMMON… Any visit 2023-08-… AE     1
#> 6 BEL08    BEL_08_885 1        COMMON… Any visit 2023-08-… AE     1
#> # ℹ 5 more variables: EditDateTime <chr>, EventLabel <chr>, ItemName <chr>,
#> #   ItemValue <chr>, ItemId <chr>

Merge and prepare data

When metadata in the Excel sheet is adjusted properly for study-specific needs (see vignette("Metadata")), it should be converted to an R object with the function get_metadata():

meta_custom <- get_metadata(system.file("metadata.xlsx", package = "clinsight"))

Next step in preparing data for ClinSight is merging the metadata object with the raw data using the function merge_meta_with_data(). This will output an informative error message if an incompatible change was made.

merged_study_data <- merge_meta_with_data(raw_data, meta_custom)
#> applying function 'identity' to the data
#> order can be derived from metadata
#> Created the following event_label and event_name combinations:
#> # A tibble: 9 × 2
#>   event_label event_name
#>   <fct>       <chr>
#> 1 SCR         Screening
#> 2 V1          Visit 1
#> 3 V2          Visit 2
#> 4 V3          Visit 3
#> 5 V4          Visit 4
#> 6 V5          Visit 5
#> 7 V6          Visit 6
#> 8 NA          Any visit
#> 9 NA          Exit
#> applying function 'apply_study_specific_suffix_fixes' to the data
#> Using user supplied "suffix_names" instead of deriving.
#> applying function 'apply_edc_specific_changes' to the data
#> Using suffix '_ITEM_TO_MERGE_WITH_PAIR' to detect item pairs
#> Verifying if following items need merging with their defined pair:
#>   CM Name, CM Frequency, AE Treatment action, CM Unit, CM Route
#> merging item 'CM Name' with its matched pair
#> merging item 'CM Frequency' with its matched pair
#> merging item 'AE Treatment action' with its matched pair
#> merging item 'CM Unit' with its matched pair
#> merging item 'CM Route' with its matched pair
#> applying function 'apply_study_specific_fixes' to the data

Finally, we can test launch ClinSight with our custom data and metadata:

#Not run
test_clinsight(merged_study_data, meta_custom)

Notice that the application shows a warning if some variables defined in the metadata are not available in the actual data, similar to the message below. It is useful to check this output carefully to see if any variable names were entered incorrectly.

# Warning in check_appdata(app_data, meta) :
#   Not all variables defined in metadata are present in the data.
#              var               item_name
# 1 AE_AESER_AEOUT             SAE outcome
# 2     WHO_WHOCAT   WHO.subclassification
# 3       DMOD_DAT    DoseModificationDate
# 4      DMOD_REAS  DoseModificationReason
# 5      DMOD_DOSE DoseModificationNewDose

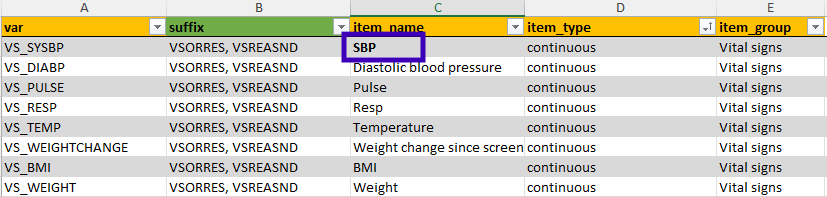

To iteratively improve the metadata, simply stop the application, adjust the metadata, merge it again with the raw data, and re-launch using test_clinsight(). For example, if we want to change the name of ‘Systolic blood pressure’ to ‘SBP’, we can adjust this in the Excel file, save the metadata and use get_metadata() again:

#Not run
adjusted_study_data <- merge_meta_with_data(raw_data, meta_custom_adjusted)
test_clinsight(adjusted_study_data, meta_custom)

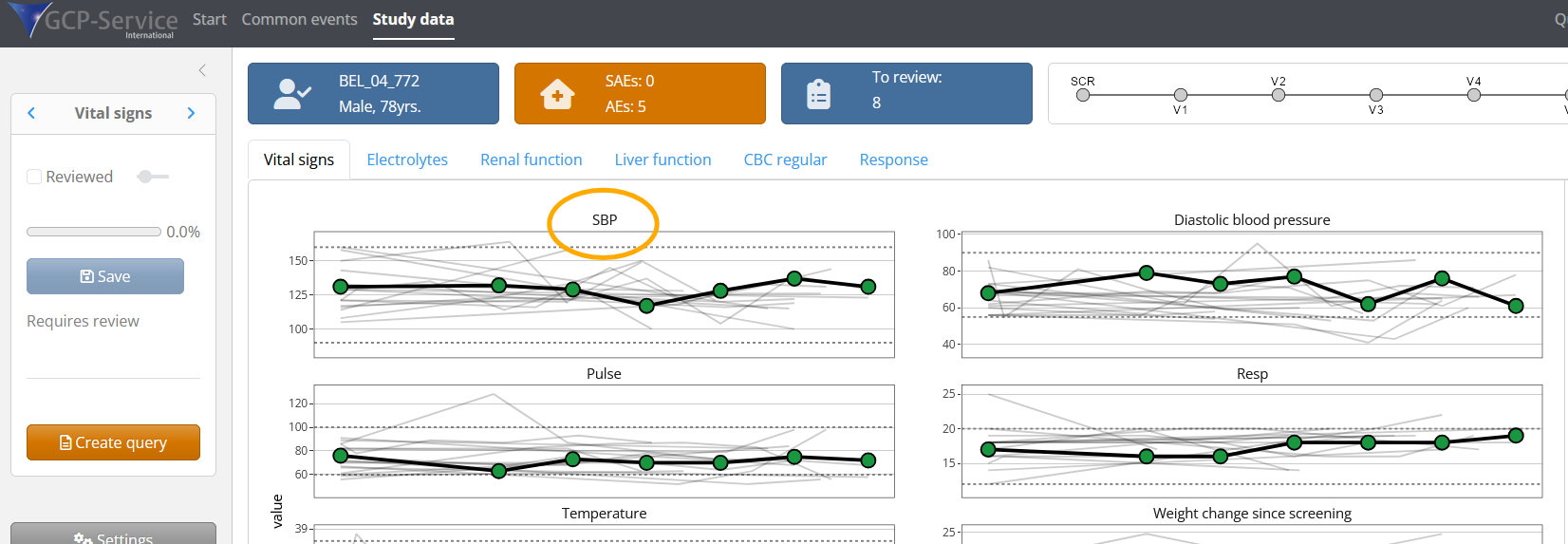

If changed correctly, the name of the variable will change accordingly in the application:
